VLX 150 Heavy-Duty Sliding Door

VLX 150 Heavy-Duty Sliding Door in Jacksonville, FL | Lightwell Windows Jacksonville

The VLX 150 Heavy-Duty Sliding Door is built for homeowners and builders in Jacksonville who want a wide opening without sacrificing strength or thermal performance. This is a large-span aluminum slider engineered for openings up to 24 feet wide, with profile walls nearly an eighth of an inch thick and stainless steel rollers that carry serious glass weight without sag. Lightwell Windows Jacksonville is an authorized ViewLux installation partner, which means you get factory-backed product support plus a local crew that installs to AAMA 2400/2410 standards. Call (904) 914-3691 to schedule a free on-site measurement and quote in Jacksonville, FL.

Call (904) 914-3691

Product Overview – VLX 150 Heavy-Duty Sliding Door

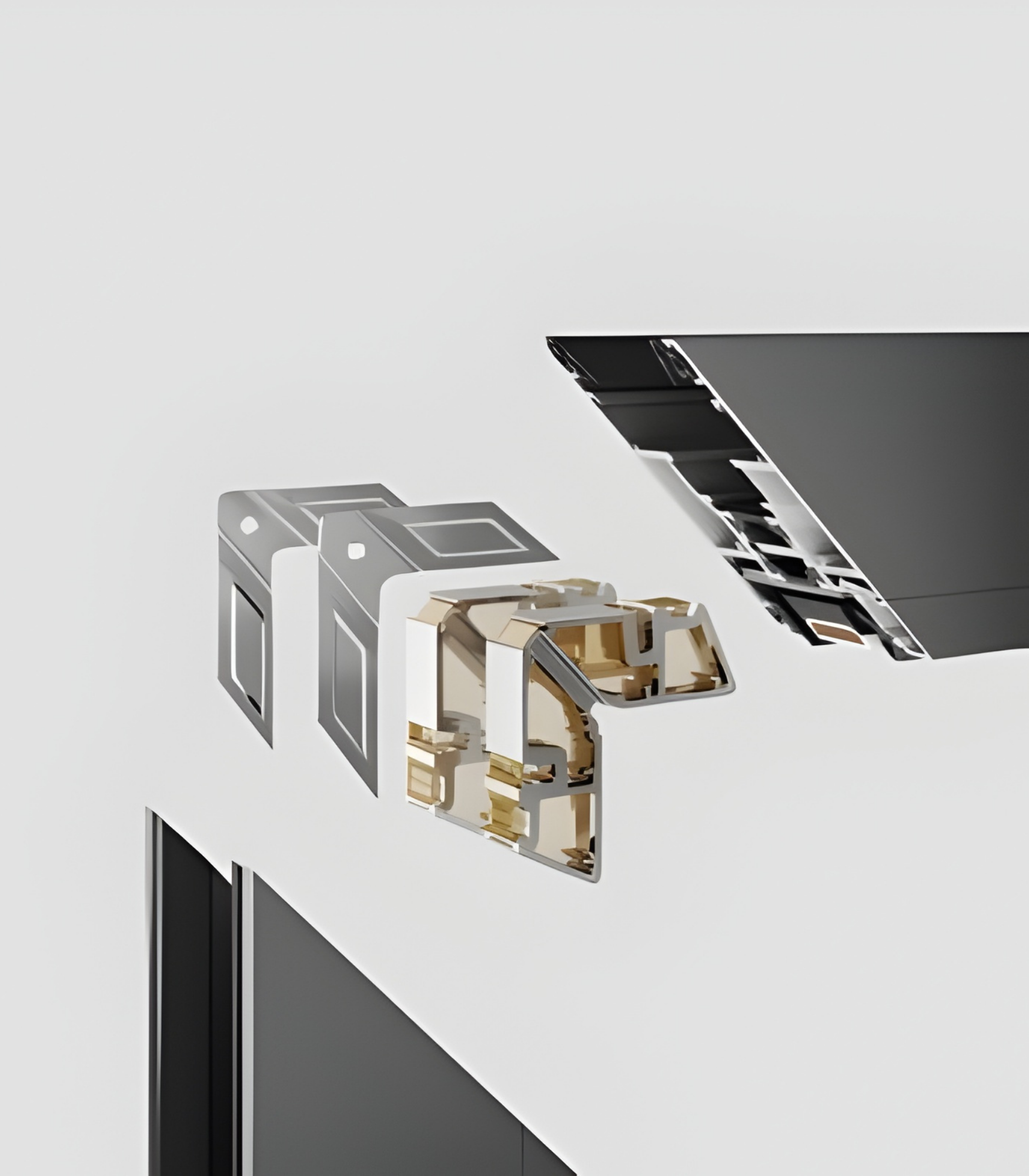

Most sliding doors feel flimsy when they get wide. The panels flex, the rollers bind, and within a few years the door drags across the track. The VLX 150 Heavy-Duty Sliding Door takes the opposite approach. It starts with an aluminum extrusion that measures 2.95 inches deep in profile and 0.118 inches in wall thickness. That is a structural frame, not a decorative trim piece. The result is a door that holds its geometry across long spans, so a 12-foot or 16-foot opening operates as smoothly as a 6-foot one.

The hardware is where heavy-duty actually means something. Rollers are stainless steel, mounted on carriages designed to carry multi-panel configurations without wearing out. The track system comes in 2-track, 3-track, and 4-track layouts, which means you can run two, three, or four panels depending on how much opening width you want to clear. A 3-track configuration on a Jacksonville lanai, for example, lets you stack two operating panels to one side and open up two-thirds of the opening to the backyard.

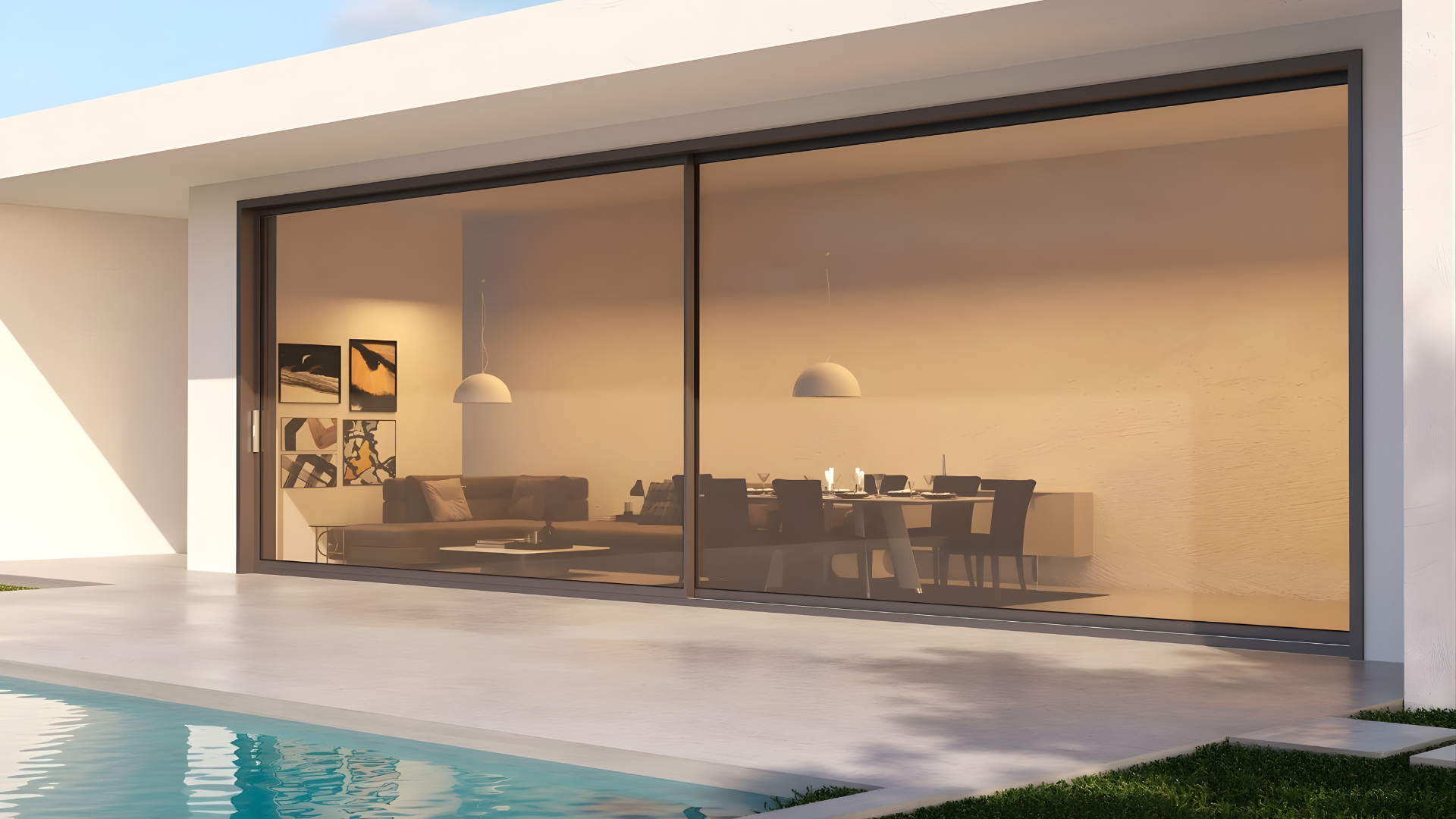

Architecturally, this door fits modern Florida homes better than a traditional French door. It gives you a cleaner sightline, less framing in the middle of the glass, and a lower threshold profile when specified. Buyers choose this series when they are building or renovating a great room, a pool-facing living space, or a second-story balcony opening. The frame carries impact-rated laminated glass without modification, which matters in Jacksonville where wind-load requirements and storm-season durability are not optional. Lightwell Windows Jacksonville has installed this series in neighborhoods from Ortega to Nocatee, and we continue to recommend it as the best balance of span, stiffness, and price among the ViewLux product line.

Technical Specifications

Here are the base specifications for the VLX 150 Heavy-Duty Sliding Door as installed by Lightwell Windows Jacksonville:

• Frame wall thickness: 0.118 in. extruded aluminum
• Profile depth: 2.95 in.
• Maximum span: up to 24 ft. wide (single opening)

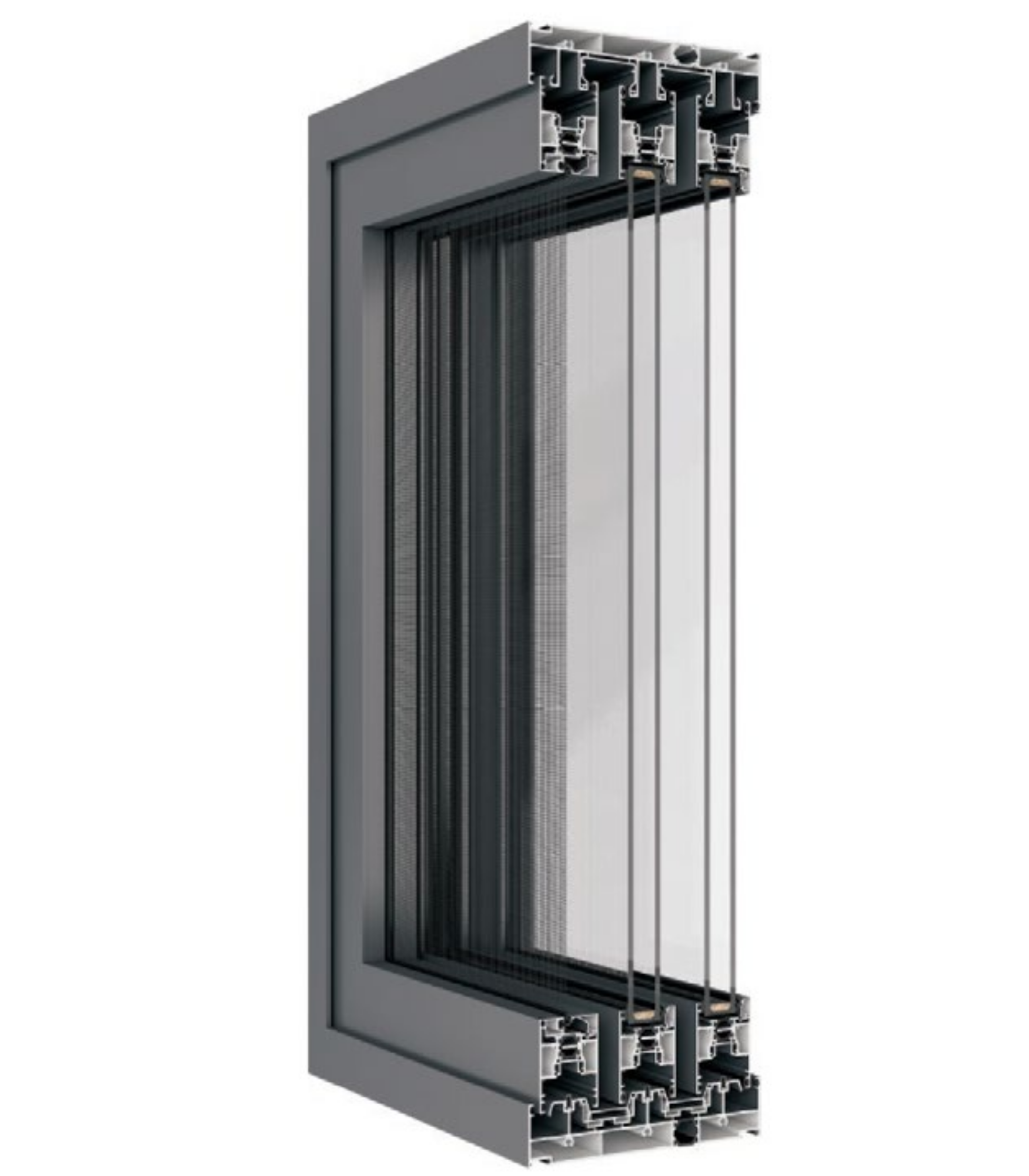

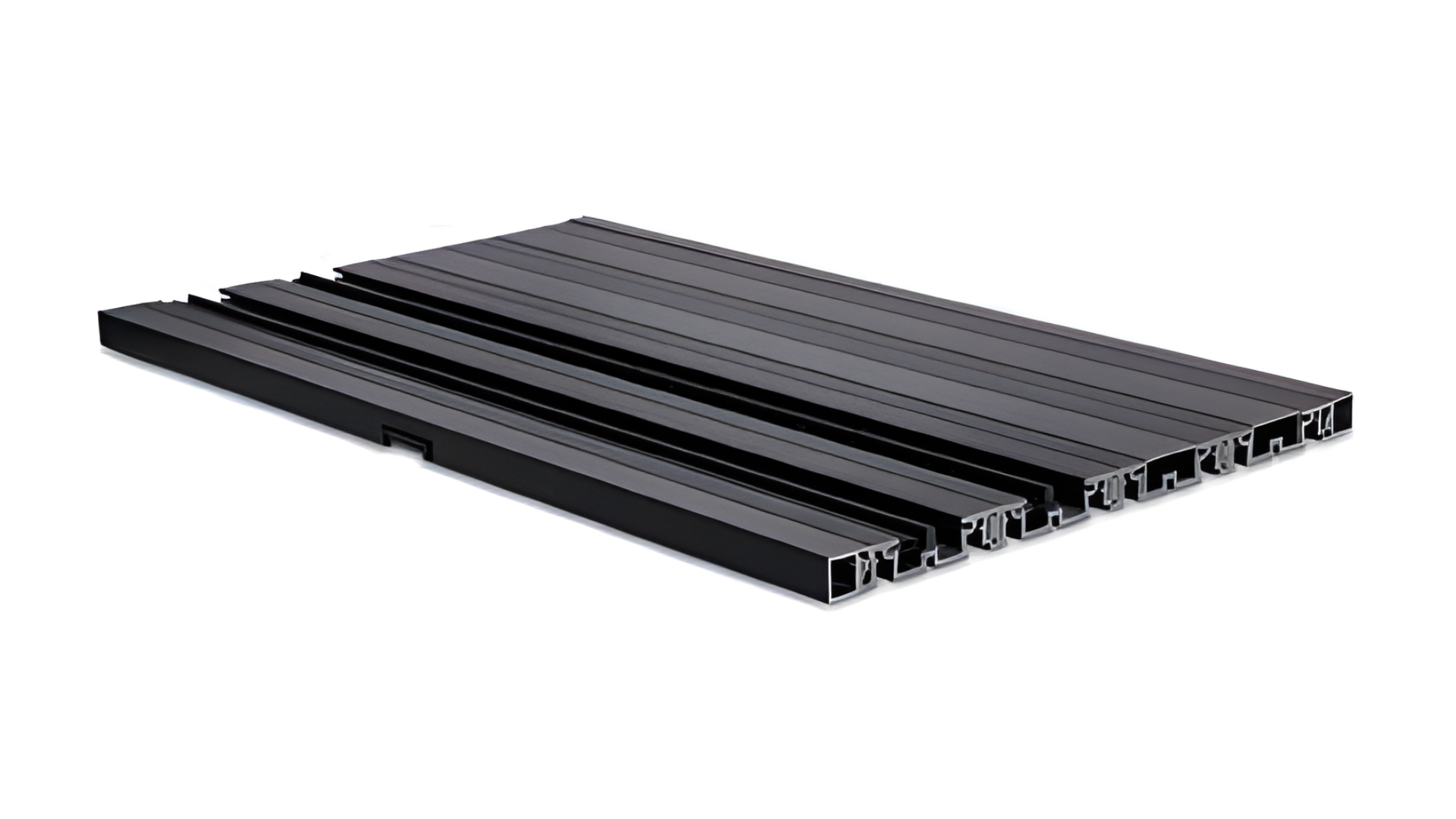

• Track configurations: 2-track, 3-track, 4-track
• Glass options: clear, Low-E, tempered, laminated, gray tint, black tint
• Frame finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: retractable screen, sliding screen
• Performance compliance: AAMA 2400/2410 installation standard, NFRC-rated thermal break, AAMA 812 perimeter sealant
• Wind rating: engineered for Jacksonville-area design wind pressures; impact-rated laminated glass available

All panel sizes are site-confirmed during measurement. The 24-foot maximum span is the engineered ceiling for the frame system; actual glass weight, panel count, and wind-load calculations for your specific Jacksonville exposure will determine the final configuration.

Performance Features

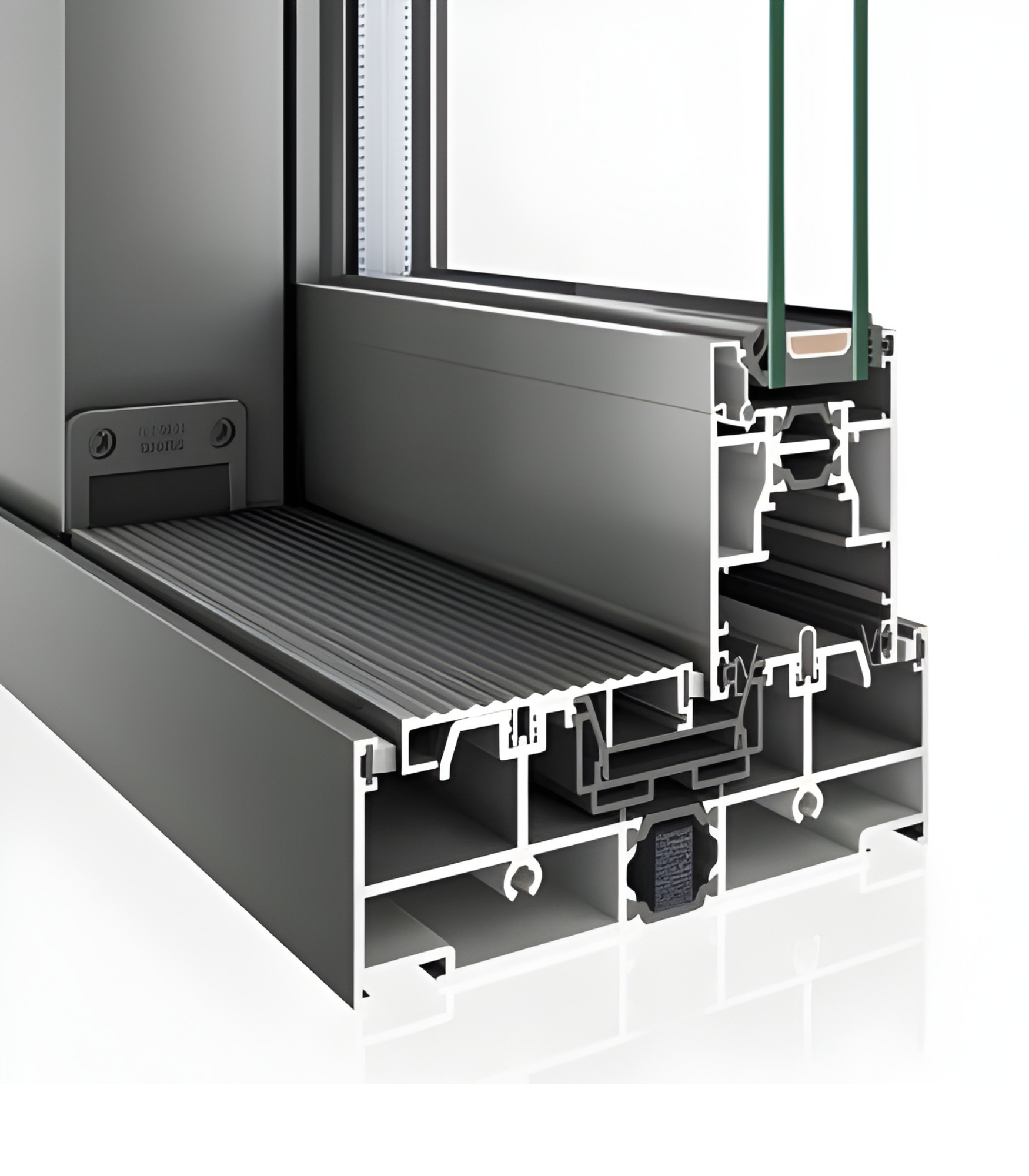

Thermal Efficiency – The VLX 150 uses a polyamide thermal break that separates the interior and exterior aluminum profiles. Without it, aluminum conducts heat straight into your living room. With it, the frame earns an NFRC-rated thermal performance that keeps your air conditioning inside during a Jacksonville August and helps control condensation on the interior frame surface.

Acoustic Performance – Laminated glass and the multi-chamber extrusion both cut sound transmission. For homes near San Jose Boulevard, I-95, or the rail corridor, we typically recommend laminated glass on the VLX 150 to bring exterior noise down to a level that does not fight your conversation in the living room.

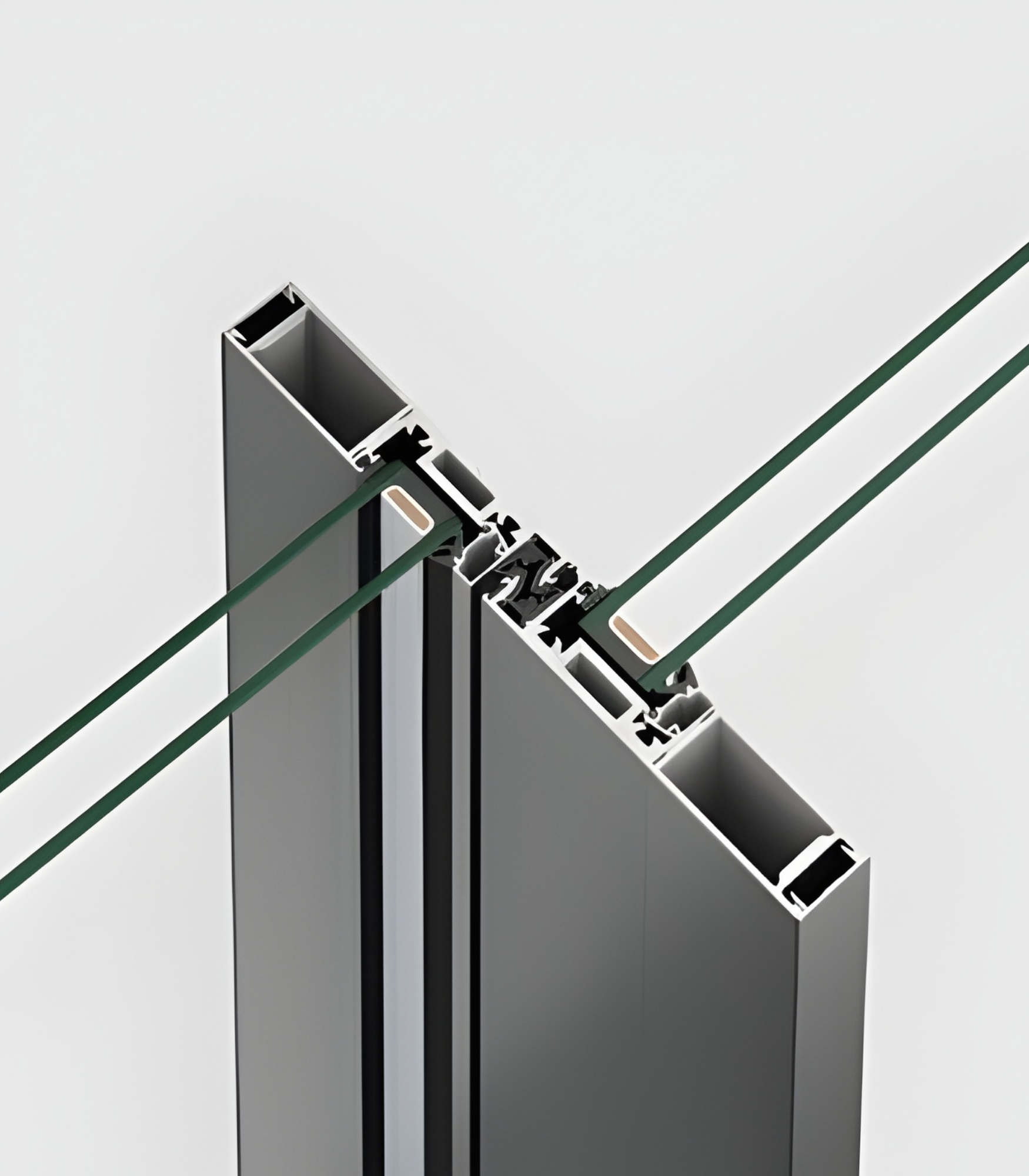

Airtightness & Weather Seal – The interlocking panel stiles and continuous pile weatherstripping create a seal that keeps conditioned air from leaking out and humid outdoor air from pushing in. On a hot afternoon in Riverside, a poorly sealed slider can leak more air than a small window. This door is built to prevent that issue at the frame level, not just with caulk.

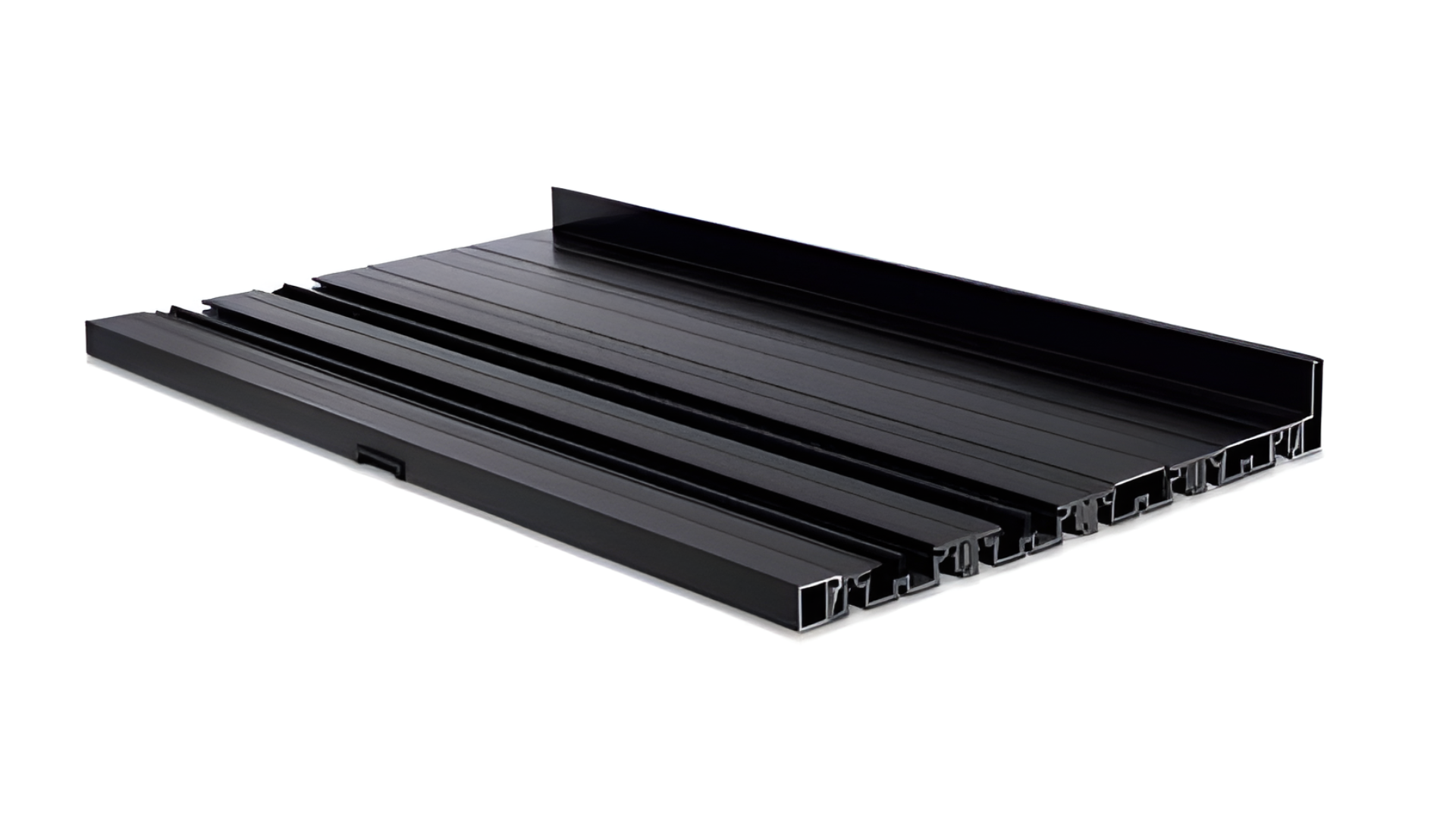

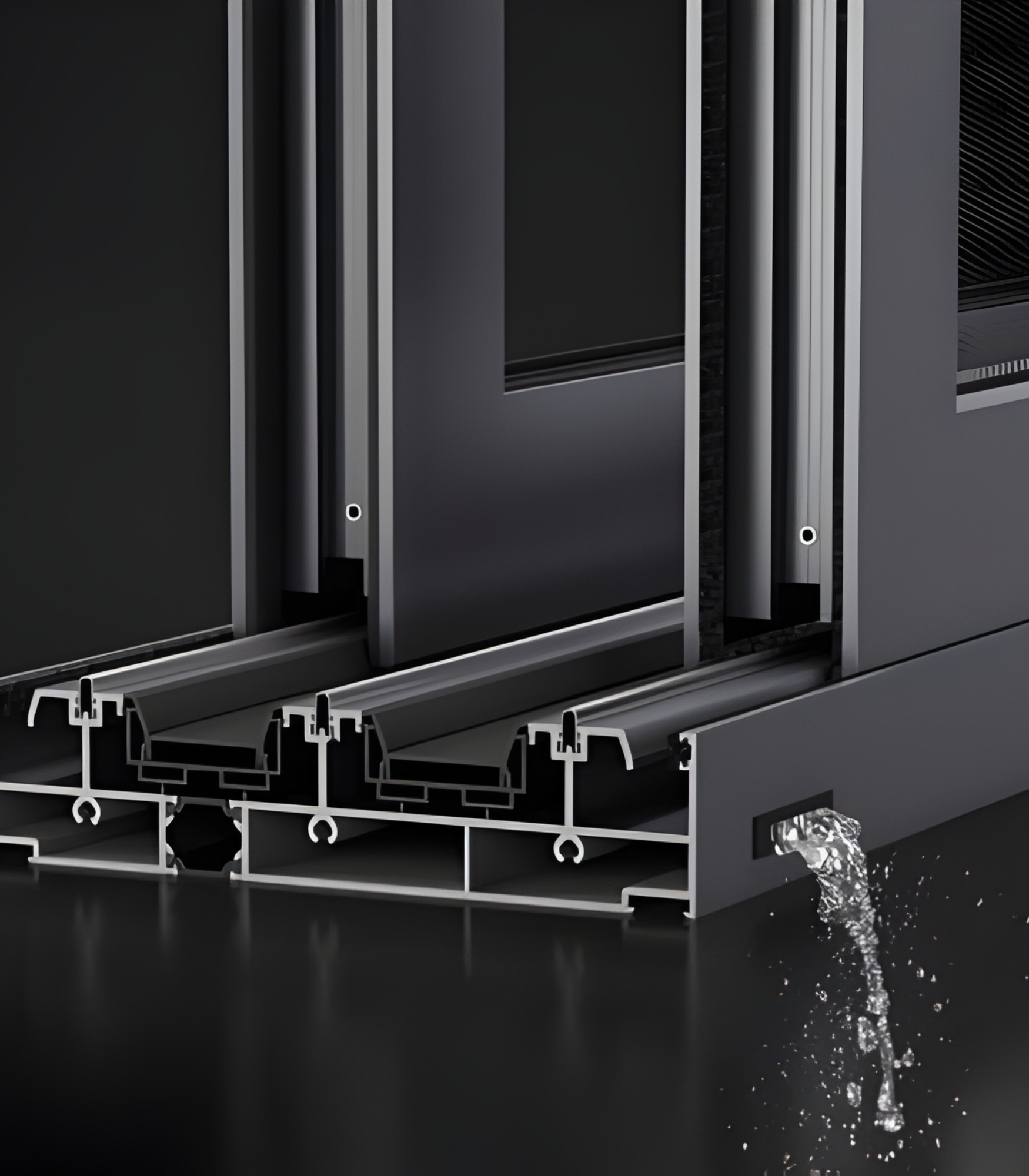

Waterproofing – The sill has an interior weep system that drains water away from the threshold and directs it to the exterior face. It is tested for water penetration resistance at the assembly level. Combined with the AAMA 812 low-expansion foam that Lightwell Windows Jacksonville applies around every perimeter joint at installation, you get a door that sheds a Jacksonville afternoon thunderstorm without letting moisture track inside.

Wind Resistance – ViewLux engineers the VLX 150’s frame depth and wall thickness specifically for large openings under lateral wind load. Jacksonville sits in a high-wind region, and a 16-foot opening catches a lot of pressure during tropical storm conditions. The roll-formed stainless hardware, the reinforcing profile, and the option for impact-rated laminated glass are what keep this door code-compliant in Duval County and surrounding areas.

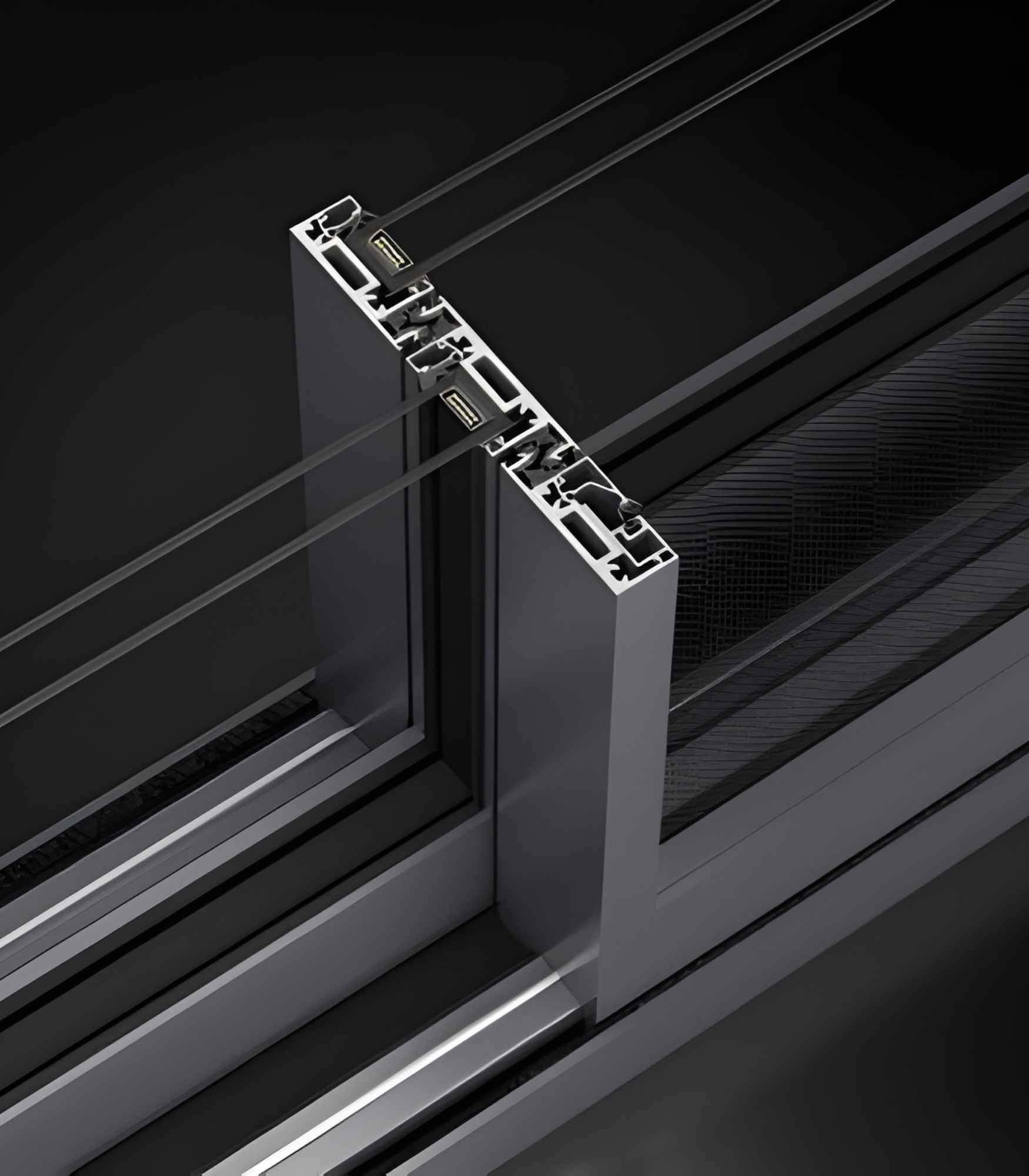

Security & Hardware – The stainless steel roller carriages and multi-point locks are not afterthoughts. The rollers are corrosion-resistant, which matters in salt-air neighborhoods like Atlantic Beach and Mayport, and the lock points engage deep into the frame. Sliding doors are historically the easiest entry point on a house; the VLX 150’s locking stile and tamper-resistant track make it considerably harder to force open.

Color & Glass Options

The VLX 150 order sheet gives you six frame finishes and six glass types, which means you can match nearly any architectural style in Jacksonville. Premium Black is our most-requested finish for modern builds with white stucco or board-and-batten exteriors – it frames the glass like a picture window. Pure White disappears into coastal and farmhouse elevations. Anodized Silver and Bronze read as classic commercial-grade aluminum, good for contemporary and mid-century homes. Champagne has a warmer, slightly coppered tone that pairs well with natural stone. Teak Wood is a powder-coated wood-look finish that gives you the look of a timber slider without rot or termite risk in Florida humidity.

On the glass side, clear is the budget baseline. Low-E is the standard upgrade in Jacksonville because it cuts solar heat gain while preserving the view. Tempered glass is a safety code requirement for doors and large panels near the floor. Laminated glass adds impact resistance and sound damping – the single best upgrade for storm protection and traffic noise. Gray tint and black tint are aesthetic choices that lower glare and add exterior privacy; we recommend them most often for west-facing openings where afternoon sun is intense.

Screen choices are retractable or sliding. The retractable screen disappears into a cassette when not in use, which keeps the opening visually clean. The sliding screen is a more traditional fixed panel that rides on its own track.

Installation by Lightwell Windows Jacksonville in Jacksonville

A sliding door that spans 12 to 24 feet does not forgive a sloppy install. If the opening is out of level, the panels bind. If the perimeter is not sealed correctly, water works its way behind the frame and into the subfloor. If the fasteners are under-torqued, the whole assembly rattles in the wind. We install the VLX 150 the way ViewLux’s warranty requires: level, plumb, square, and sealed to AAMA 2400/2410 standards.

Every install starts with an inspection of the rough opening. In Jacksonville, that often means finding rot in an older wood-framed opening or checking a concrete slab for out-of-plane settlement. We address those issues before the door goes in, because a new door installed into a bad opening will fail. Fasteners are placed at the manufacturer’s specified intervals, shims are used to hold the frame square while it is anchored, and low-expansion AAMA 812-rated foam is applied continuously around all four sides of the frame. Then we apply the exterior sealant bead and run a water test on the sill and lower corners before interior trim and cleanup.

Jacksonville’s climate also plays a role in material choices. We use stainless or coated fasteners rated for exterior exposure. We check that the weep path is clear. We verify the threshold slope drains away from the interior slab. ViewLux’s warranty covers defects in the door assembly, but it will not cover failure caused by improper installation. An authorized partner install from Lightwell Windows Jacksonville keeps your warranty intact and gives you one company to call for measurement, install, and any follow-up service. Phone: (904) 914-3691.

Frequently Asked Questions – VLX 150 Heavy-Duty Sliding Door

What is the lead time for the VLX 150 Heavy-Duty Sliding Door?
Lead time for the VLX 150 in Jacksonville typically runs 4 to 8 weeks from order confirmation, depending on the track configuration, glass package, and finish you select. Custom sizes and impact-rated laminated glass add time. Call (904) 914-3691 and we will give you a current production estimate for your exact specification.

Does the VLX 150 qualify for energy tax credits?
The VLX 150 may qualify for federal energy tax credits if the glass package meets the current ENERGY STAR criteria for the Southern climate zone, which covers Jacksonville and most of Florida. Qualification depends on the Low-E coating and the exact U-factor and SHGC ratings of the glass you select, so we recommend confirming eligibility with our team before you order. Call (904) 914-3691 for specifics.

What warranty comes with the Heavy-Duty Sliding Door?
ViewLux provides a written manufacturer’s warranty on the frame, hardware, and glass of the VLX 150; the exact term and coverage are specified in the warranty document you receive at order, and professional installation by Lightwell Windows Jacksonville is required to keep that warranty in force. Our installation workmanship is also covered by our own written warranty.

Can I customize the size?
Yes. The VLX 150 is fabricated to your opening dimensions, not sold in stock sizes. The frame system is engineered for spans up to 24 feet wide, and your panel count, track configuration, glass type, and finish are all selected per project. Lightwell Windows Jacksonville measures every opening before ordering, so the door is built to your house, not the other way around.

How do I maintain aluminum frames?
Rinse the track and sill every few months to clear sand and debris, clean the powder-coated or anodized finish with mild soap and water, and inspect the weatherstripping annually for compression or tearing. In Jacksonville’s humid and salt-adjacent climate, keeping the weep holes clear is the single best way to protect the door long-term. Call (904) 914-3691 if you need a tune-up or roller service.

Get a Quote – VLX 150 Heavy-Duty Sliding Door in Jacksonville

If you are planning a wide opening in Jacksonville, FL, start with a measurement that is actually accurate. Lightwell Windows Jacksonville will come to your home, confirm your rough opening, review glass and finish options in person, and give you a written line-item quote. Call (904) 914-3691 to schedule your free on-site measurement and product consultation.

Written by the team at Lightwell Windows Jacksonville, serving Jacksonville, FL and surrounding communities as an authorized ViewLux installation partner.
